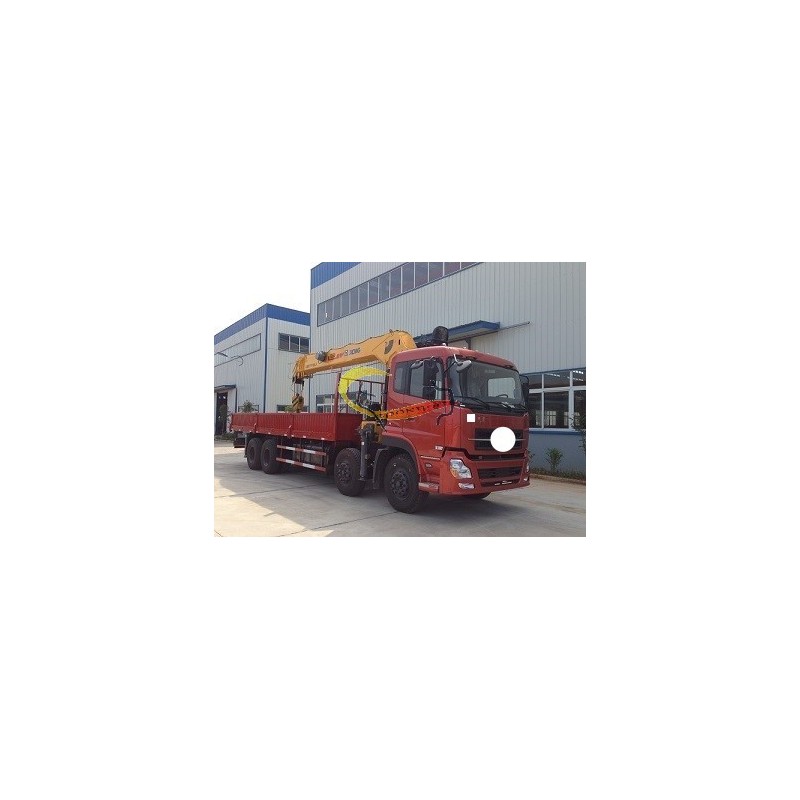

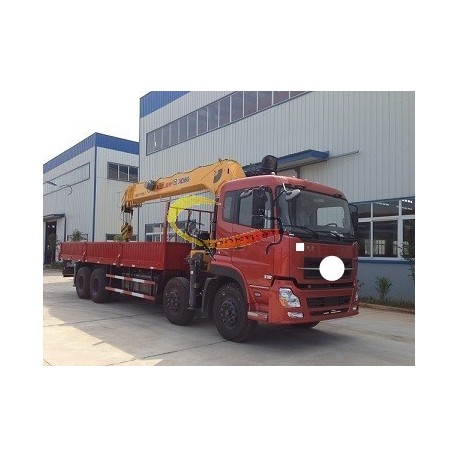

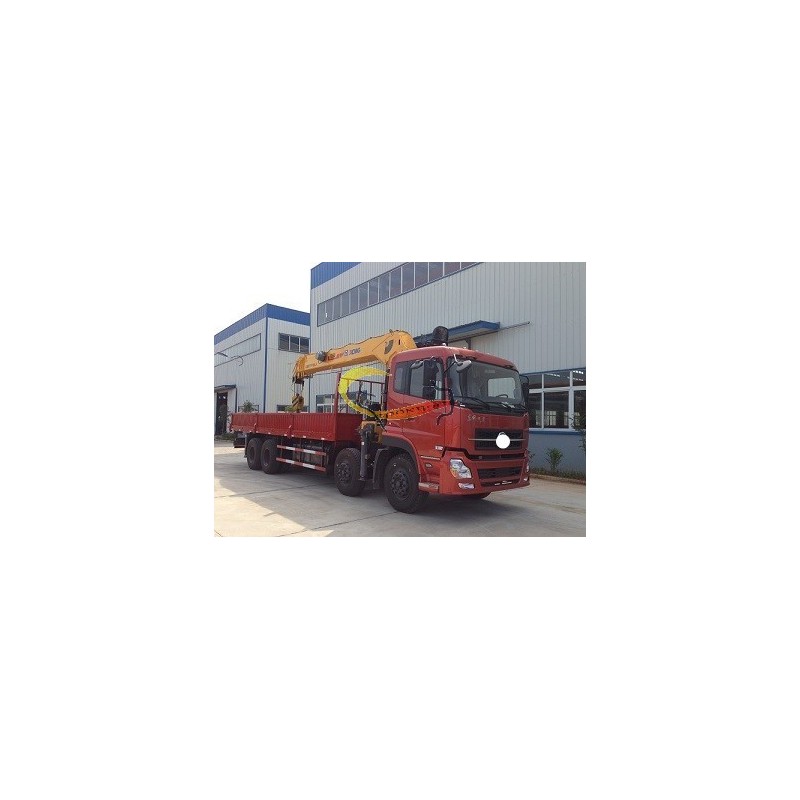

EQ5310JSQT truck crane truck
16 tons of car crane
Chassis Model: DFL1311A3
| EQ5310JSQT truck crane truck | |||
| The main technical parameters | |||
| product name： | Crane truck | Dimensions： | 11990×2500×3910（mm） |
| Chassis model： | DFL1311A3 | Cargo compartment size： | 8200,8300,8500×2294×550,800（mm） |
| Total quality： | 31000（Kg） | Approach / departure angle： | 28/11（°） |
| Rated quality： | 12165,13765,12100,13700（Kg） | Hanging before the suspension： | 1460/2780（mm） |
| Curb quality： | 18705,17105（Kg） | Speed： | 90（km/h） |
| engine | Engine production enterprise | Displacement（ml） | power（kw） |
| ISDe270 30 | D Engine Co., Ltd | 6700 | 198 |
| ISDe245 30 | D s Engine Co., Ltd | 6700 | 180 |
| ISLe290 30 | Engine Co., Ltd | 8900 | 213 |
| L270 30 | Engine Co., Ltd | 8900 | 199 |
| L290 30 | Engine Co., Ltd | 8900 | 213 |
| C245 33 | D Engine Co., Ltd | 8300 | 180 |
| C260 33 | D Engine Co., Ltd | 8300 | 191 |
| YC6L270-33 | Guangxi Yuchai Machinery Co., Ltd | 8424 | 199 |
| dCi290-30 | D Motor Corporation Ltd | 11120 | 213 |
| Emission Standards： | GB3847-2005,GB17691-2005 Country Ⅲ | ||
| Number of axes： | 4 | Front track： | 1940/1940,1986/1986,2040/2040/1860/1860（mm） |
| Wheelbase： | 1950+4250+1300,1950+4250+1350,1950+4500+1300,1950+4500+1350,1950+4500+1430,1850+4600+1430,1850+4600+1350 | Rear track： | 1860/1860（mm） |
| Number of tires： | 12 | Tire specifications： | 10.00-20,10.00R20,11.00-20,11.00R20,295/80R22.5 |
| Fuel type： | Diesel | Number of springs： | 8/8/10,3/3/4,9/9/10 |
| Axle load： | 6500/6500/18000（And loaded with double shaft） | The number of cabs： | 2,3 |
| Vehicle Remark： | Straight-arm crane model, rated lifting mass and weight are (Kg): SQ16S: 16000,6200, SQ12S: 12000,4600 | ||
| When the number of cabs is 2, the corresponding rated mass (Kg) is 12165,13765; | |||
| When the number of passengers in the cab is 3, the corresponding rated mass (Kg) is 12100,13700. | |||
| Container size and other configuration changes caused by changes in the quality of the parameters within 3%, negligible. | |||
| After the lower part of the protective device: material Q235, bolted, cross-section size 100 × 50, from the ground height: 530. | |||
| Only the chassis of the 1950 + 4500 + 1300 wheelbase. | |||
| The car should be equipped with a driving recorder. | |||
| Multi-azimuth map： | |||
| Dedicated performance： | |||
| Fuel announcement： | Q5310JSQT truck crane truck fuel consumption standards | ||
| Product model | EQ5310JSQT | ||
| Implementation of standards | JT719《Limits and Measurement Methods of Fuel Consumption for Freight Car》 | ||
| Full load | Speed，km/h | 30,40,50,60,70,80 | |
| Fuel consumption | Stalls | －－,8,9,9,9,9 | |
| Fuel consumption，L/100km | －－,20.3,22.2,24.9,29.2,35.2 | ||
| Fuel consumption up to the model number | 2012 No. 21 No. 1178 (H021A381) | ||
