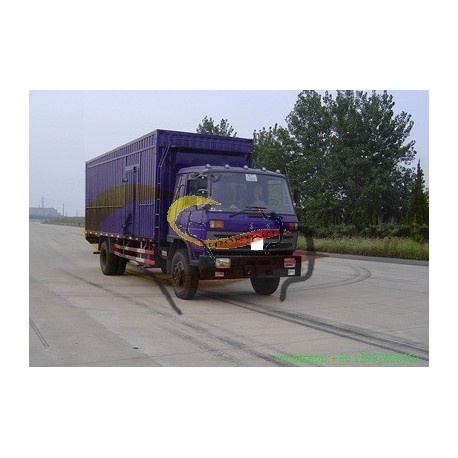

Van TruckEQ5203XXYT
New product
Chassis: dfl1203a
Model: eq5313xxyt
Chassis: eq1318vb3gj1

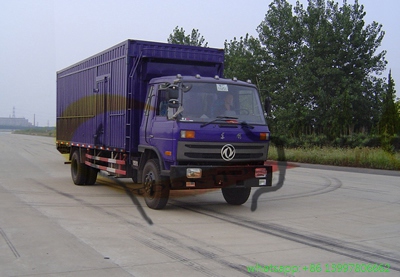

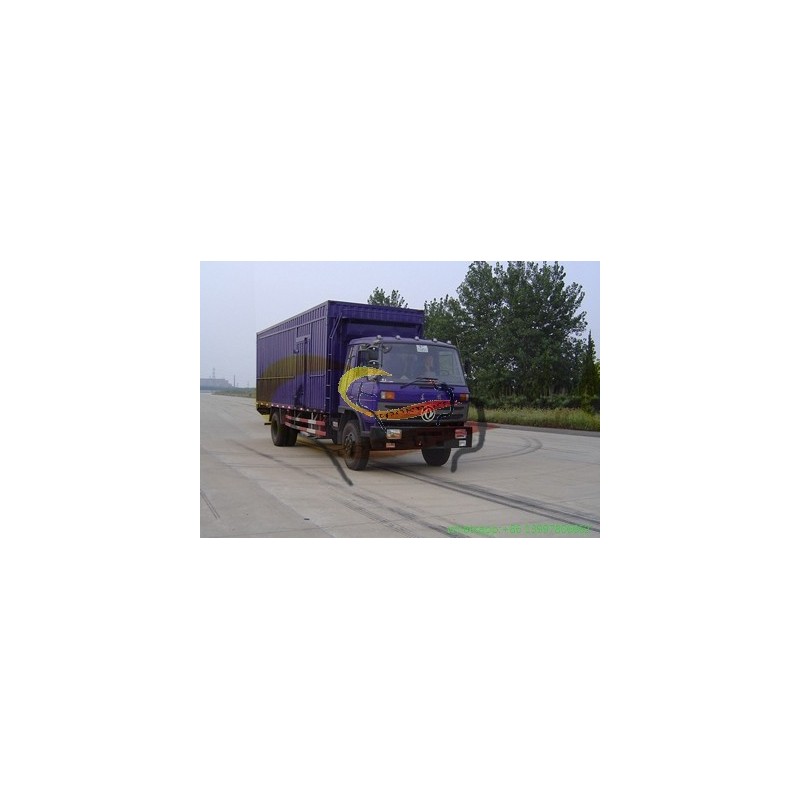

Model: eq5120xxyt van type transport vehicle
Chassis: EQ1120GFJ1
4 Items
In stock
More info
1、 High-strength and crash worthiness, shining like new one after long time. Sun block, heat insulation, good seal ability.
2、 Corrosion resisting, maintenance-free, weather fastness is great, long service life.
3、 Exciting appearance, used for movable advertisement, provide visual wallop extremely, tree customer brand image.
4、 Convenient maintenance, restore it to its original shape and appearance.
5、 This type of vehicle with modern fashion style, beautiful to look at, easy to operate, it’s safe and reliable to use, and has superior quality of rainproof and dustproof. As an economic and practical ideal transport tool, it’s widely used in the transport of break bulk cargo .
6、 The cargo box can select and use corrugated board structure, and the right side of cargo box can install optional door.
|

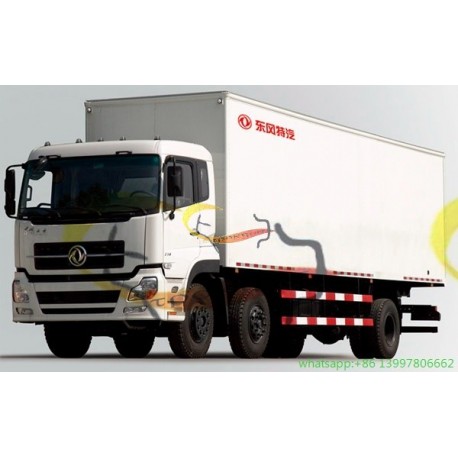

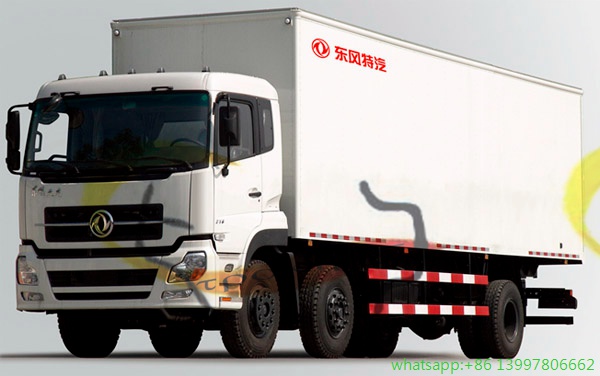

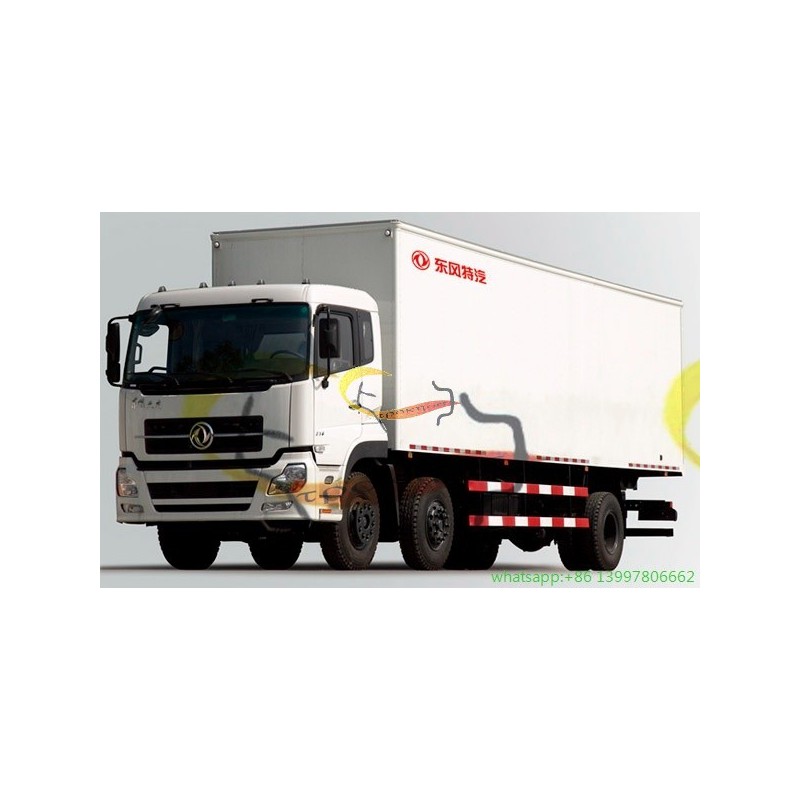

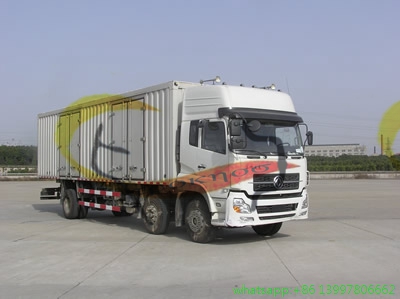

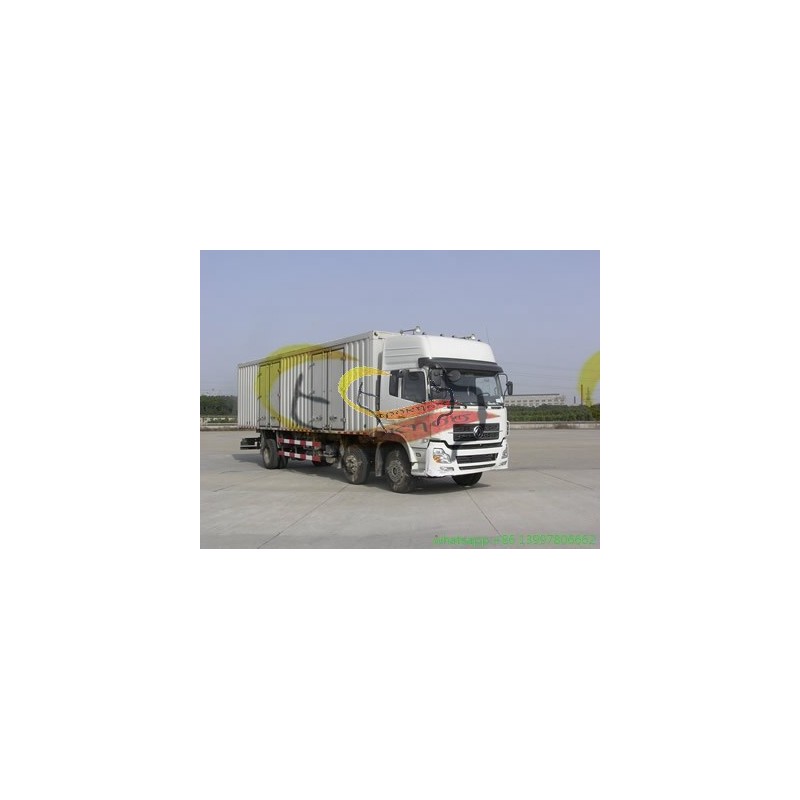

6*2 EQ5203XXYT Van Truck |
|
|
Overall Dimensions(mm) |
11990*2500*3900 |
|
Cargo box Inner Size(mm) |
9400，9600*2294*2400 |
|
Wheelbase(mm) |
1950+5350 |
|
Gross Weight(kg) |
20050 |
|
Loaded Weight(kg) |
9865，9800 |
|
Curb Weight(kg) |
10055 |
|
Engine Model |
C245 33 |
|
Displacement/Power |
8300/180 |
|
Displacement standar |
Euro 3 |
|
Oil Consumption(L/100km) |
21.1 |
|
Maximum speed (km/h) |
90 |
|
Cab Type |
D310 High-top Twin -Flat Head Cab |
|
Audio Configuration |
Mp4 |
|
Heating and Cooling System |
Air Conditioning, warm air |
|
Cold Boot Temperature Range |
General condition:-10to55℃；special circumstances：-40to55 |
|
Transmission Gear |
Datong seven Gear transmission |
|
Tire Size |
10.00-20,10.00R20,11.00-20,11.00R20 |
|
Chassis Model |
DFL1203A |
| EQ5120XXYT型厢式运输车 | |
| 车 型 | 东风EQ5120XXYT型厢式运输车 |
| 外型尺寸(mm) | 8000,9000×2490×3900,3700 |
| 货厢栏板内尺寸 | 5700,6700×2300,2400×2400,2200 |
| 轴距(mm) | 4550,5000 |
| 总质量(kg) | 12000 |
| 额定载质量(kg) | 4950,4850 |
| 整备质量(kg) | 6855,6955 |
| 发动机型号 | EQD160-30，EQ6102DT-30，EQD160-31，EQD140-31， |
| 排量/功率 | 6234/118,5638/104.2,6234/118,6234/103, |
| 底盘型号 | EQ1120GFJ1 |
| 批次 | 239 |

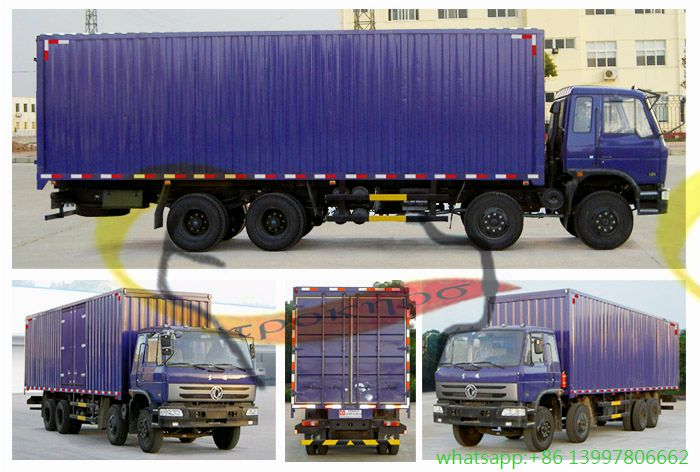

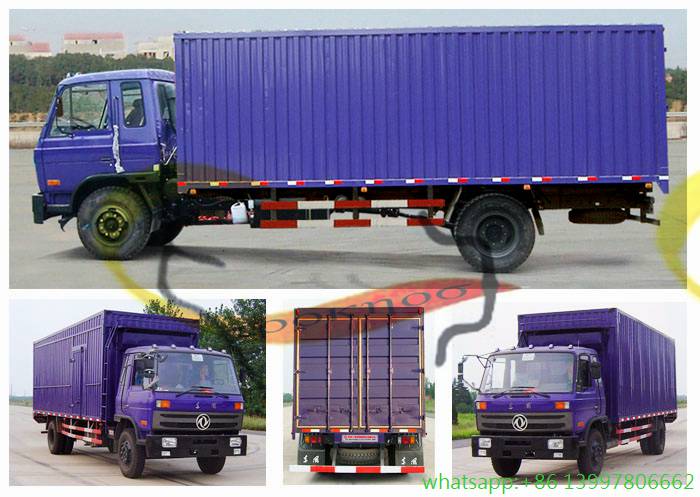

| EQ5313XXYT型厢式运输车 | |
| 车 型 | 东风EQ5313XXYT型厢式运输车 |
| 外型尺寸(mm) | 9950×2500,2550×3300,3500 |
| 货厢栏板内尺寸 | 7600×2300,2400×1800,2000 |
| 轴距(mm) | 1950+3310+1350,1950+3640+1350 |
| 总质量(kg) | 31000 |
| 额定载质量(kg) | 19005 |
| 整备质量(kg) | 11800 |
| 发动机型号 | YC6A240-31，YC6A260-31，YC6A240-33，YC6A260-33， |
| 排量/功率 | 7255/177,7255/191,7255/177,7255/191, |
| 底盘型号 | EQ1318VB3GJ1 |
| 批次 | 182 |
