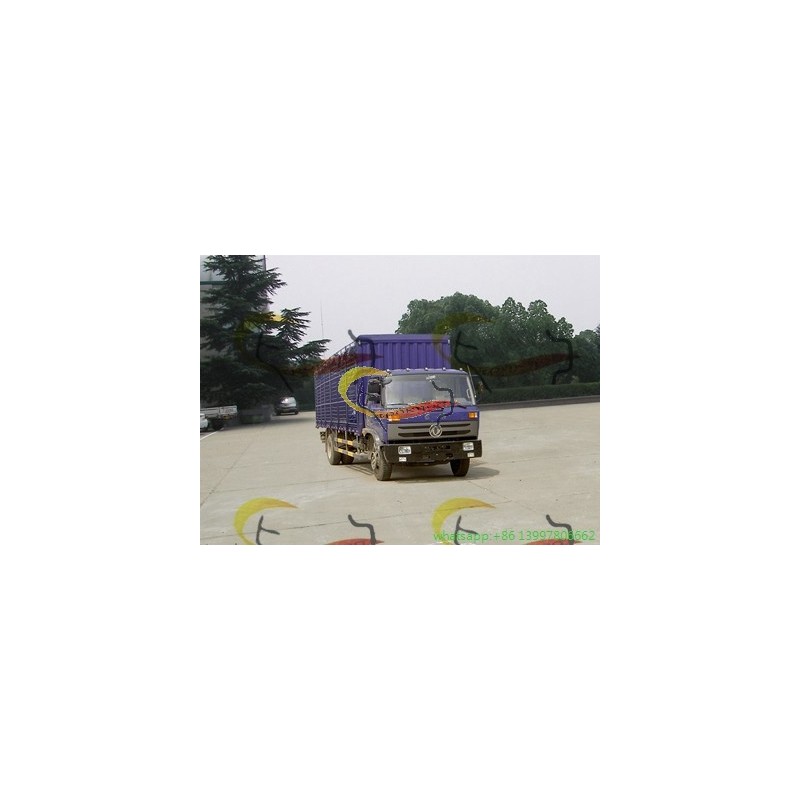

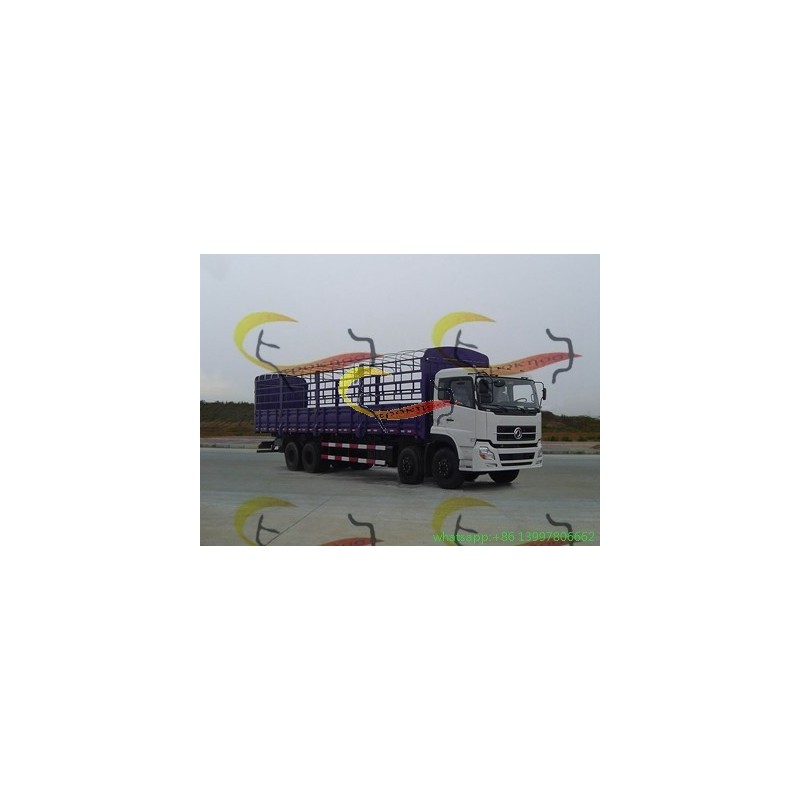

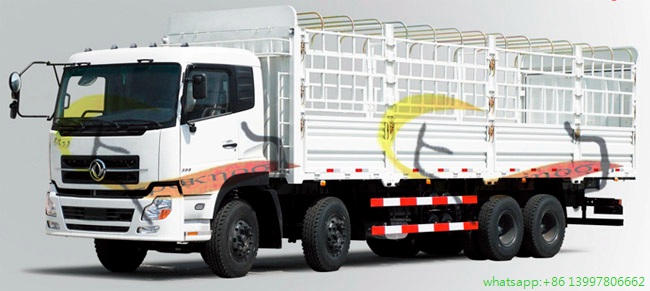

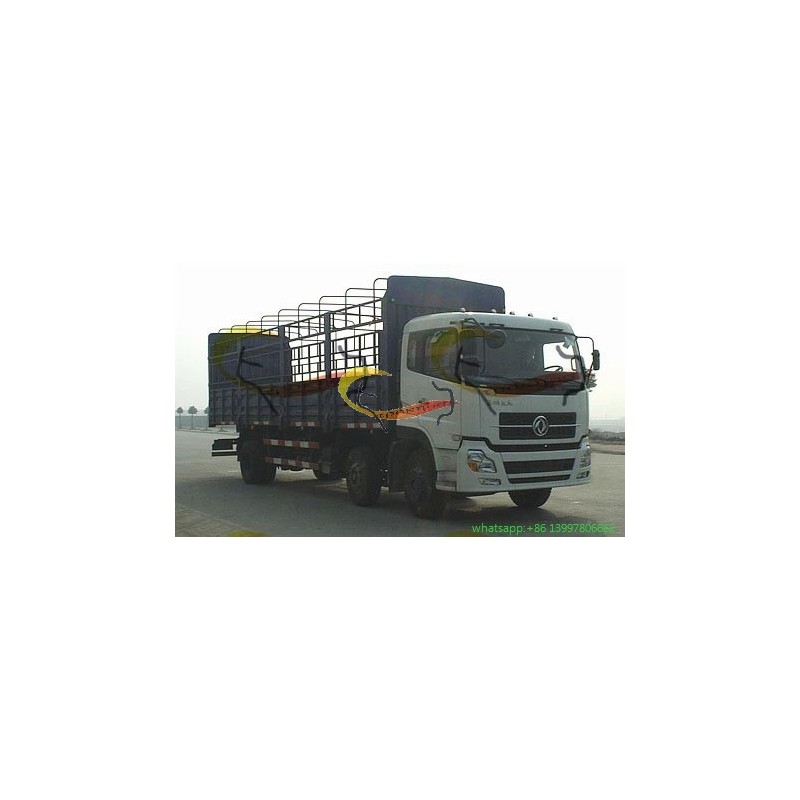

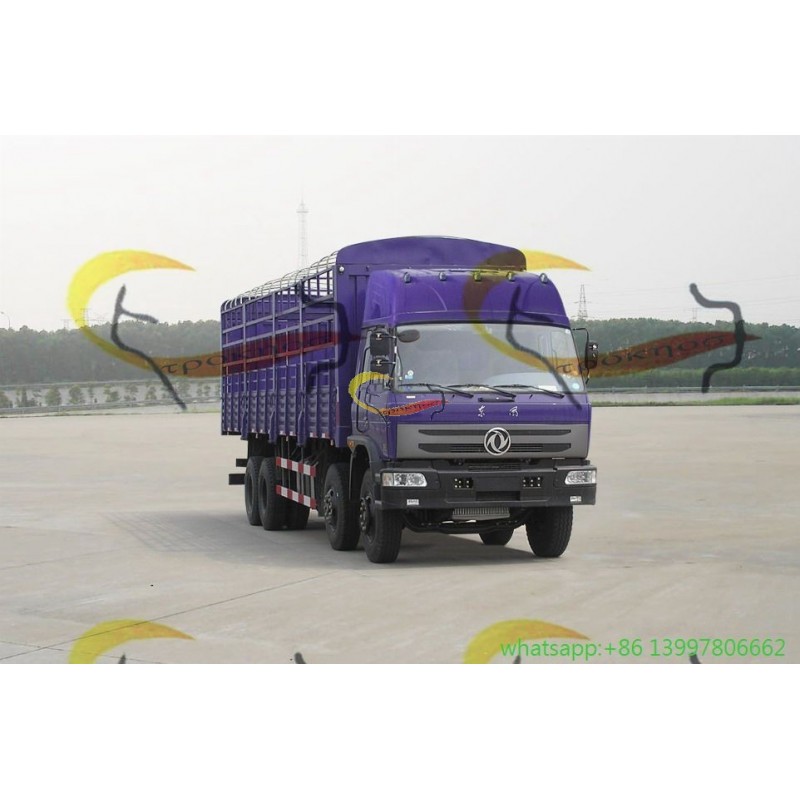

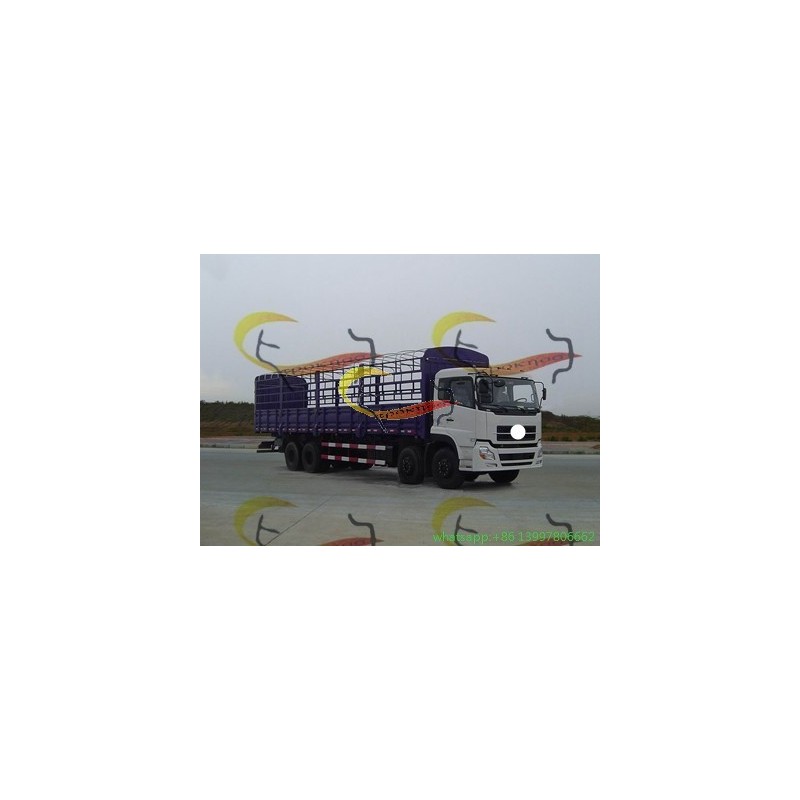

Stake Truck EQ5280CCQT1
New product
3 Items
In stock
Warning: Last items in stock!
More info
1.Cargo box produced with high- quality steel and advanced technology.
2.Rational construction, reliable performance, easy and simple to operate, beautiful appearance.
3.The cargo box select and use corrugated board structure, flower column can adopt rectangular tube or circular tube.
|
EQ5280CCQT1 Stake Truck Main specification |
|
|
Vehicle Model |
EQ5280CCQT1 Stake Truck |
|
Overall Dimensions(mm) |
12000*2500*3900，3700，3500 |
|
Cargo box Inner Size(mm) |
9600，9400*2300*550，800 |
|
Wheelbase(mm) |
1950+4250+1300，1950+4250+1350 |
|
Gross Weight(kg) |
54125 |
|
Loaded Weight(kg) |
40000 |
|
Curb Weight(kg) |
14125 |
|
Engine Model |
L315 30 |
|
Displacement/Power |
8900/231 |
|
Displacement standar |
Euro 3 |
|
Oil Consumption(L/100km) |
26.1 |
|
Maximum speed (km/h) |
90 |
|
Cab Type |
High-top Twin -Flat Head Cab |
|
Audio Configuration |
Mp4 |
|
Heating and Cooling System |
Air Conditioning, warm air |
|
Cold Boot Temperature Range |
General condition:-10to55℃；special circumstances：-40to55 |
|
Transmission Gear |
Shanxi Fast nine Gear transmission |
|
Oil tank capacity |
Completed steel 350L |
|
Tire Size |
10.00-20, 10.00R20, 11.00-20, 11.00R20 |
|
Chassis Model |
DFL1311A3 |

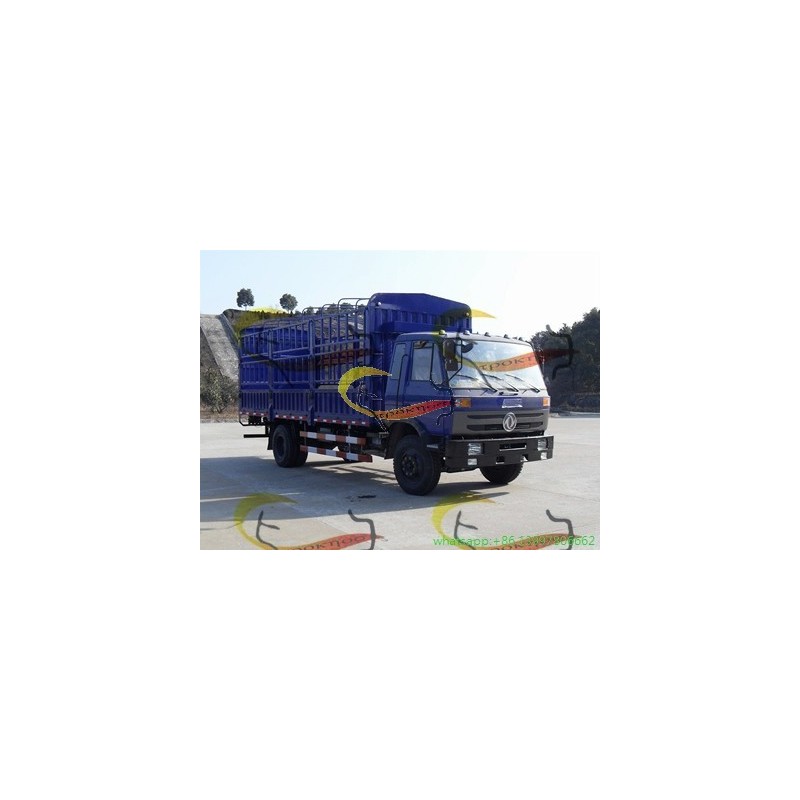

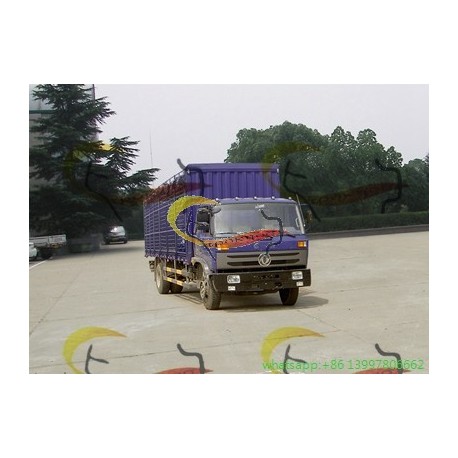

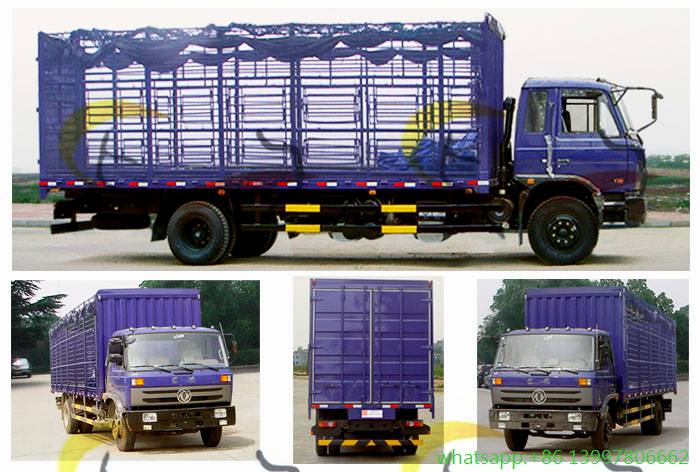

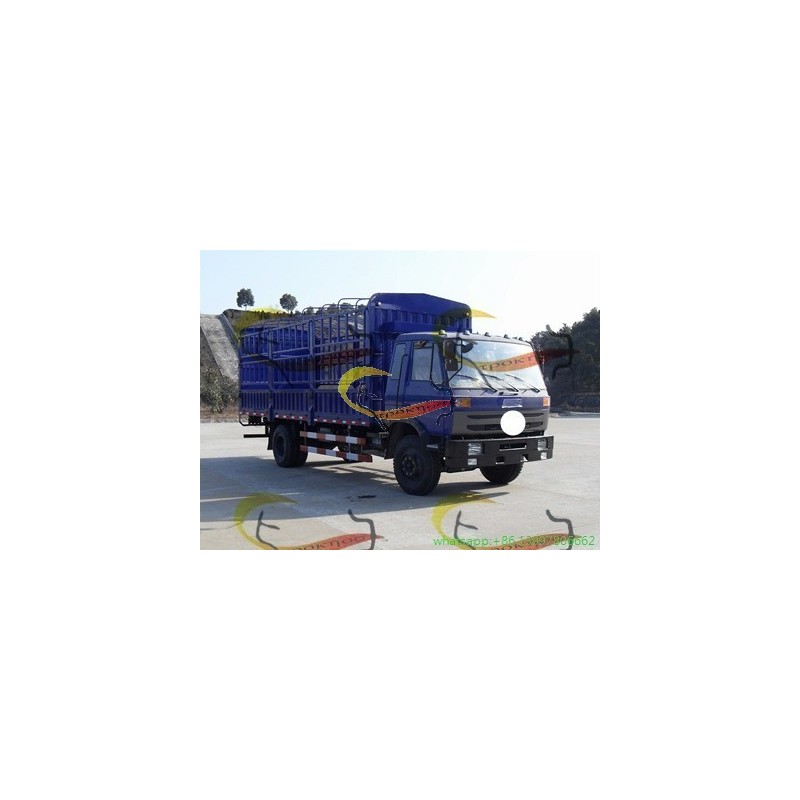

EQ5120CCQT型仓栅式运输车
产品特点
1. 车厢采用优质钢材，先进的生产工艺制造而成。
2. 结构合理、性能可靠、操作简便、外形美观。
3. 车厢采用瓦楞板结构，花栏可采用矩形管或圆管结构。
| EQ5120CCQT型仓栅式运输车 | |
| 车 型 | EQ5120CCQT型仓栅式运输车 |
| 外型尺寸(mm) | 8000×2490×3900,3700,3500 |
| 货厢栏板内尺寸 | 5700×2294×550,600 |
| 轴距(mm) | 4550,5000 |
| 总质量(kg) | 11900 |
| 额定载质量(kg) | 4950 |
| 整备质量(kg) | 6755 |
| 发动机型号 | EQD160-30，EQ6102DT-30，EQD160-31，EQD140-31， |
| 排量/功率 | 6234/118,5638/104.2,6234/118,6234/103, |
| 底盘型号 | EQ1120GFJ1 |
| 批次 | 239 |
