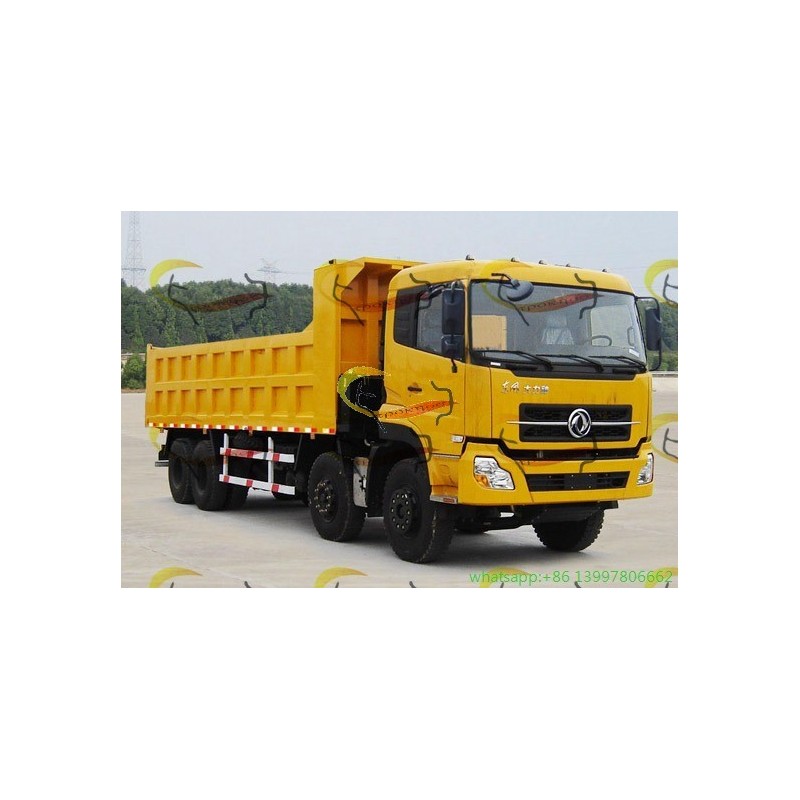

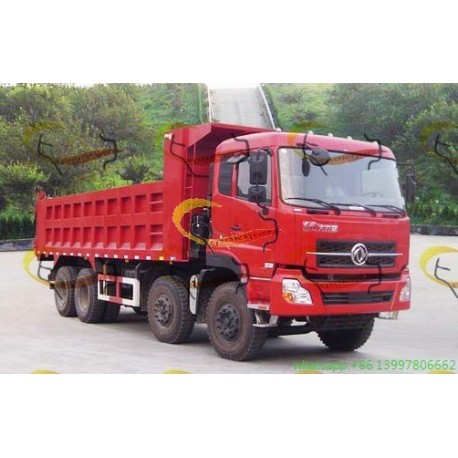

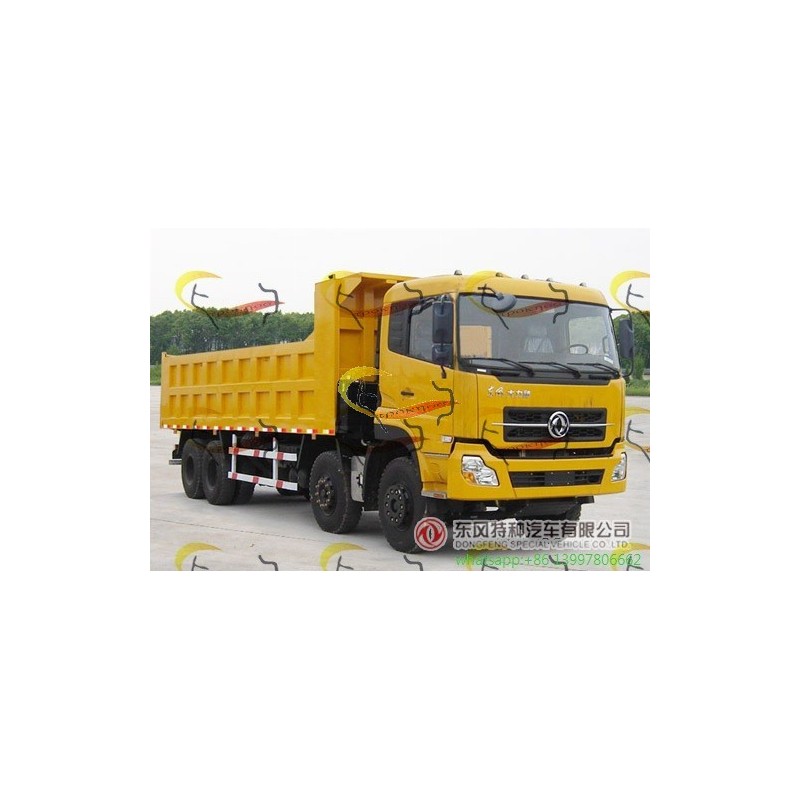

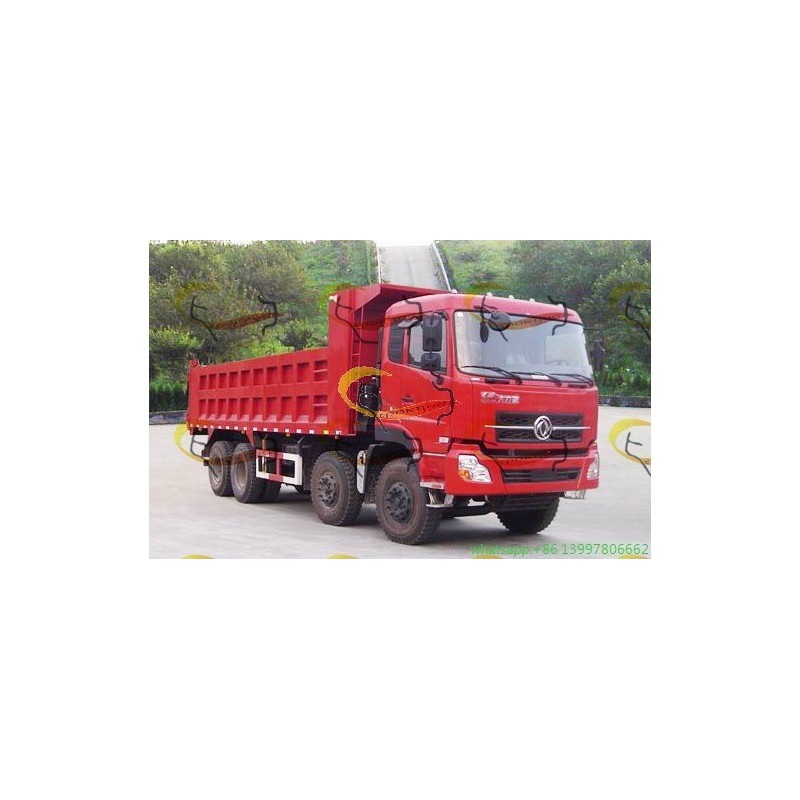

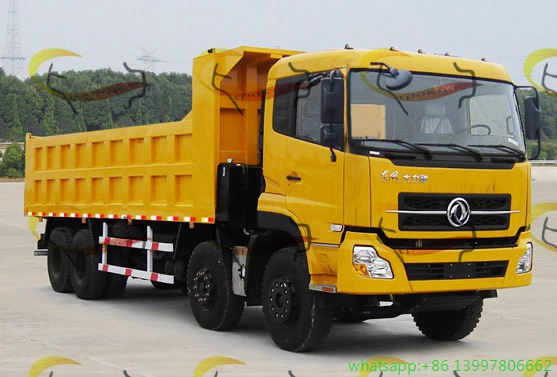

dump Truck EQ3318ATX
New product
dump Truck
5 Items
In stock
Data sheet
| Compositions | Non-asbestos: NA |
| Styles | Overhaul package: FS |
| package | Bare packing |
More info
characteristic:
1. the chassis adopts Dongfeng limited high quality dump truck chassis, with advanced technology and reliable performance.
2. The use of new high-strength steel can realize the lightweight of vehicle weight, reduce fuel consumption, reduce the use cost of vehicle volume and improve the service life of vehicle volume.
3. The semi-automatic flow process tooling ensures the excellent quality of products.
4. This series of dump trucks adopts the front top hydraulic lifting mechanism and domestic leading high-quality brand hydraulic parts. The subframe adopts rectangular tube structure and the bottom plate adopts rectangular tube four longitudinal beam structure.
5. The wide tail through shaft turnover structure can ensure the stability of lifting.
6. It is applicable to the short-distance transportation of earthwork, muck and other goods in the mining area.

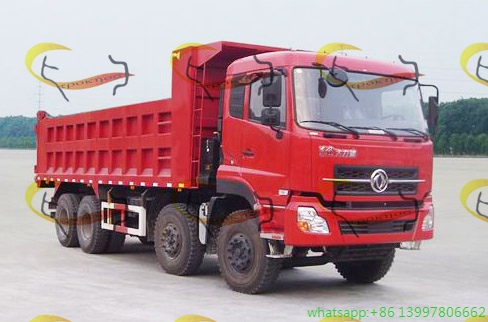

| 车 型 | EQ3318AT1型自卸汽车 |
| 外型尺寸(mm) | 9500,9700,9800×2500×3450 |
| 货厢栏板内尺寸(mm) | 6600,6800,7000×2250×1290,1260,1230 |
| 轴距(mm) | 1850+3400+1350,1850+3100+1450,1850+3400+1450 |
| 总质量(kg) | 31000 |
| 额定载质量(kg) | 16100,16035 |
| 整备质量(kg) | 14770 |
| 发动机型号 | dCi375-30, ISLe375 30, YC6M375-30, YC6M375-31,YC6M375-33, L375 30, dCi340-30, EQR340-33, YC6M340-33, L340 30 |
| 排量/功率 | 11120/275,8900/275, 9839/276,9839/276, 9839/276, 8900/276, 11120/250,11120/250,9839/250,8900/250 |
| 底盘型号 | DFL3310A10 |
| 批次 | 239 |

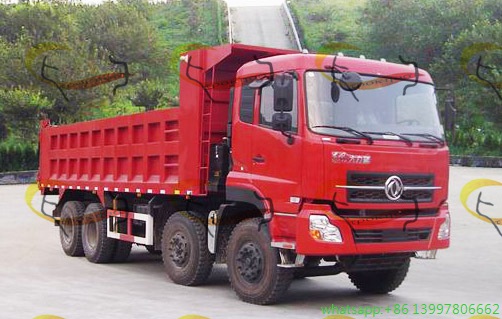

| 车 型 | EQ3318AT2型自卸汽车 |
| 外型尺寸(mm) | 9900,10100,10200×2500×3450 |
| 货厢栏板内尺寸(mm) | 7000,7200,7400×2200×1250,1220,1190 |
| 轴距(mm) | 1850+3400+1350,1850+3100+1450,1850+3400+1450 |
| 总质量(kg) | 31000 |
| 额定载质量(kg) | 16100,16035 |
| 整备质量(kg) | 14770 |
| 发动机型号 | dCi375-30, ISLe375 30, YC6M375-30, YC6M375-31,YC6M375-33, L375 30, dCi340-30, EQR340-33, YC6M340-33, L340 30 |
| 排量/功率 | 11120/275,8900/275, 9839/276,9839/276, 9839/276, 8900/276, 11120/250,11120/250,9839/250,8900/250 |
| 底盘型号 | DFL3310A10 |

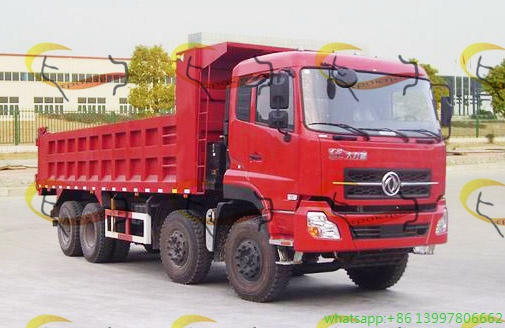

| 车 型 | EQ3318AT3型自卸汽车 |
| 外型尺寸(mm) | 10300,10500,10700,10750×2500×3450 |
| 货厢栏板内尺寸(mm) | 7400,7600,7800,8000×2200×1190,1160,1130,1110 |
| 轴距(mm) | 1850+3800+1350,1950+3600+1350,1850+3800+1450 |
| 总质量(kg) | 31000 |
| 额定载质量(kg) | 16100,16035 |
| 整备质量(kg) | 14770 |
| 发动机型号 | dCi340-30, dCi290-30, ISLe340 30,YC6M340-30, ISLe290 30,YC6M340-31, YC6M290-30, YC6M290-33, YC6M340-33, L290 30, L340 30, EQR340-33 |
| 排量/功率 | 11120/250,11120/213,8900/250,9839/250, 8900/213, 9839/250, 9839/215, 9839/215, 9839/250,8900/213, 8900/250, 11120/250 |
| 底盘型号 | DFL3310A11 |
| 车 型 | EQ3318AT4型自卸汽车 |
| 外型尺寸(mm) | 10700,10900,11100×2500×3450, 3760 |
| 货厢栏板内尺寸(mm) | 7800,8000,8200×2300×1040, |
| 轴距(mm) | 1850+4200+1450,1850+4600+1450 |
| 总质量(kg) | 31000 |
| 额定载质量(kg) | 16100,16035 |
| 整备质量(kg) | 14770 |
| 发动机型号 | dCi340-30, EQR340-33, dCi375-30, EQR375-33, YC6M340-33, YC6M340-31, YC6M375-31, YC6M375-33, ISLe340 30, L340 30, ISLe375 30, L375 30 |
| 排量/功率 | 11120/250,11120/250,11120/276, 11120/275,9839/250, 9839/250, 9839/276, 9839/276, 8900/250, 8900/250, 8900/275, 8900/276 |
| 底盘型号 | DFL3318A4 |

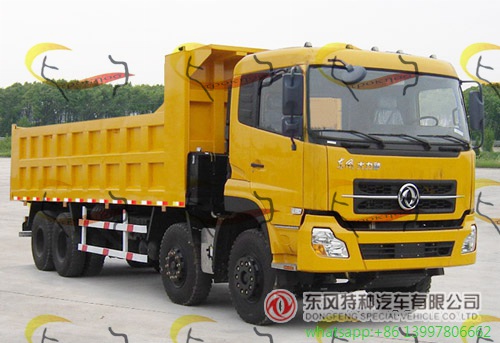

| 车 型 | EQ3318AT5型自卸汽车 |
| 外型尺寸(mm) | 11300,11400,11500×2500×3450, 3760 |
| 货厢栏板内尺寸(mm) | 8400,8600×2300×1000, |
| 轴距(mm) | 1850+4200+1450,1850+4600+1450 |
| 总质量(kg) | 31000 |
| 额定载质量(kg) | 16100,16035 |
| 整备质量(kg) | 14770 |
| 发动机型号 | dCi340-30,EQR340-33,dCi375-30,EQR375-33,YC6M340-33,YC6M340-31, YC6M375-31,YC6M375-33,ISLe340 30,L340 30,ISLe375 30,L375 30, |
| 排量/功率 | 11120/250,11120/250,11120/276, 11120/275,9839/250, 9839/250, 9839/276, 9839/276, 8900/250, 8900/250, 8900/275, 8900/276 |
| 底盘型号 | DFL3318A4 |
| 批次 | 239 |
